Description
Model: DY1200LBI
Frequency(Hz): 50/60
Ignition System: T.C.I
Fuel: Unleaded Gasoline
Type: Forced Air-cooled, 4-stroke, OHC
Rated AC Output(KW): 1.0
Engine Model: XY147F
Bore×Stroke(mm): 47×41.5
Fuel Tank Capacity(L): 3.6
Oil Capacity(L): 0.6
Net Dimension: (L×W×H)mm 492×262×406
Net Weight/Dry Weight(kg): 18.5/20.5
Description

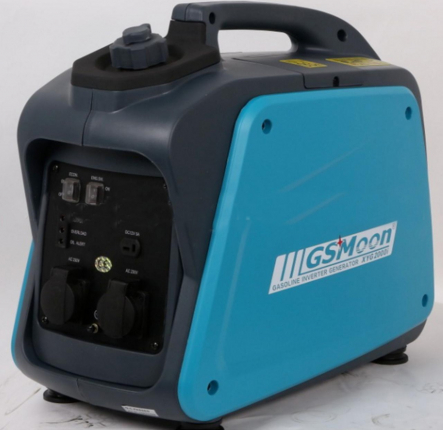

Brand Name: GS Moon
Model Number: XYG2000i
Output Type: AC Single Phase
Speed: 5000
Frequency: 50Hz
Rated Power: 1.6kw
Rated Voltage: 230V
Rated Current: 10a
Color: Yellow,Red,Blue
Wave type: Pure sine wave
Brand Name: Kipor
Model Number: IG2000
Output Type: AC Single Phase
Speed: 5000
Frequency: 50Hz
Rated Power: 1.6kw
Rated Voltage: 230V
Rated Current: 10a
Color: Yellow,Red,Blue
Wave type: Pure sine wave

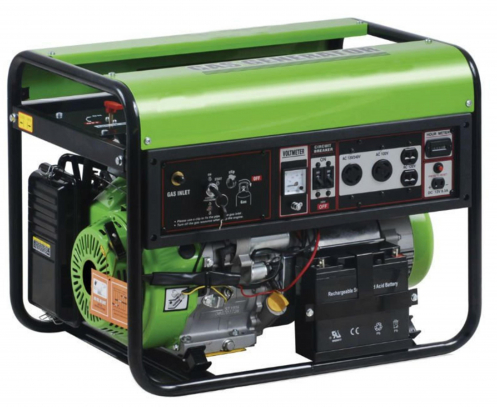

Brand Name: PUXIN
Model Number: PX- 3KW
Output Type: AC Single Phase
Speed: 1500RPM
Frequency: 50HZ
Rated Power: 3000W
Rated Voltage: 230V
Rated Current: 12V 8.3A
Generator Type: Single-phase Brush Motor
Displacement: 163cc
Ignition System: T.C.I.
Engine oil capacity: 0.55L
Suitable gas: Biogas/LPG
Engine Type: CC168F
Gas consumption: 2.1 m3/h
Bore X Stroke: 68 x 45mm
Dimensions: 710*525*560mm
Weight: 75kg
HS CODE: 85022000
General Temperature Requirement: -5°C~40°C
Prime Power : 4KW / 5.0KVA 240 Volts 20Amps/ Standby Power : 4KW / 5.0kVA
Power Factor : 0.8 / Phase Voltage : Single Phase 240 Volt
Frequency : 50 Hertz
Engine : OEM SH186FAE Single Cylinder 11hp 418cc Yanmar Style Diesel
RPM : 3000/min (Clockwise - View From Flywheel)
Cooling Method : Air Cooled / Oil type & Capacity : 15W/40 – 1.6LT
Alternator : Single Phase Brushed With AVR
Starter System : 12 volt Electric - 32A/H Battery Included
Individual Items :Hour-Hertz-Volt Meter
Low Oil Light. Low Oil Shutdown
Safety Systems : Battery Isolator - No
Emergency Stop - No
Failsafe Shutdown Fuel Solenoid - No
Noise Level : 70 dBA at 7 metres
Fuel Tank Capacity : 15 Litres (-/c Fuel Gauge)
Running Time : 10-12 Hours Depending On Load
Fuel Consumption : 1.1 litres/hour (Average)
Chassis Enclosure : Silenced Cabinet
Sound Deadening, Weather Resistant
Prime Power : 4.6KW / 5.0KVA 240 Volts 20Amps
Standby Power : 5.5KW / 6.0kVA
Power Factor : 0.8
Phase Voltage : Single Phase 240 Volt
Frequency : 50 Hertz
Engine : OEM SH186FAE Single Cylinder 11hp 418cc Yanmar Style Diesel
RPM : 3000/min (Clockwise - View From Flywheel)
Cooling Method : Air Cooled
Oil type & Capacity : 15W/40 – 1.6LT
Alternator : Single Phase Brushed With AVR
Starter System : 12 volt Electric - 32A/H Battery Included
Controller : No
Individual Items :Hour-Hertz-Volt Meter
Low Oil Light
Low Oil Shutdown
Safety Systems : Battery Isolator - No
Emergency Stop - No
Failsafe Shutdown Fuel Solenoid - No
Noise Level : 70 dBA at 7 metres
Fuel Tank Capacity : 15 Litres (-/c Fuel Gauge)
Running Time : 10-12 Hours Depending On Load
Fuel Consumption : 1.1 litres/hour (Average)
Chassis Enclosure : Silenced Cabinet
Sound Deadening
Weather Resistant
External Use
Mine Site Ready Bunding : No
ATS (Mains Failure) : No
DC Outlets: 12 Volt 8.3 Amps
Single Phase Outlets : 2 x 15 Amp
Three Phase Outlets : No
Hardwire Terminals : No
ELCB : Earth Leakage Circuit Breaker
Options : Automatic Start Systems (Not Recommended)
GSM - No
Timer - Yes
Synchronisation - No
Wireless Remote - Yes
Solar System Compatible (Majority) - Yes
ATS (Mains Failure Detection / Auto Transfer Switch) - Yes
Minespec Padlockable Battery Isolator
Weight : 171 kg
Dimensions : 94 L x 56 W x 76 H cm

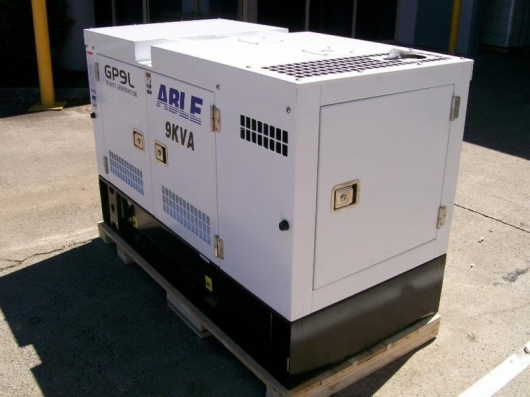

Prime Power : 9kW / 9kVA 240 Volts 37Amps
Standby Power : 9.4kW / 9.4kVA
Power Factor : 1.0
Phase Voltage : Single Phase 240 Volt
Frequency : 50 Hertz
Engine : OEM 3 Cylinder Diesel
RPM : 1500/min
Cooling Method : Water Cooled
Alternator : Single Phase 4 Pole Brushless Synchronous -/c AVR
Starter System : 12 volt Electric - Battery Included
Controller : Smartgen HGM6100K Series
2 Wire / Remote Start Capable
Over Temperature Protection
Over Current Protection
Low Oil Protection
Safety Systems : Battery Isolator
Emergency Stop
Failsafe Shutdown Fuel Solenoid
Noise Level : 65 dBA at 7 metres
Fuel Tank Capacity : 90 Litres (-/c Fuel Gauge)
Running Time : 40 Hours Continuous (prime load)
Fuel Consumption : 2.2 litres/hour (prime load)
Chassis Enclosure : Lockable
Sound Deadening Throughout
Weather Resistant Powder Coating
Stainless Steel Fittings
External Use
Mine Site Ready Bunding : Yes
ATS (Mains Failure) : Easy Connect Plug (ATS Box Optional)
Single Phase Outlets : 3 x 15 Amp IP66
Three Phase Outlets : No
Hardwire Terminals : Yes
RCD / RCBO : Australian Standard (IP67 Enclosed)
Options : Automatic Start Systems
GSM
Timer
Synchronisation
Wireless Remote
Solar System Compatible (Majority)
ATS (Mains Failure Detection / Auto Transfer Switch)
Minespec Padlockable Battery Isolator
Weight : 560 kg
Dimensions : 165 L x 80 W x 105 H cm
RATED OUTPUT: 10 KVA
VOLTAGE: 415 V
CLASS OF RATING: STANDBY
ALTERNATOR: BRUSHLESS WITH AVR
NUMBER OF PHASE: 3
DIESEL ENGINE
MAKE AND MODEL: LAIDONG
NUMBER OF CYLINDER: 3
TYPE: VERTICAL INLINE 3
SPEED: 1500 RPM
FUEL TANK: 93 Ltrs
FUEL CONSUMPTION: 2 L/H (75% LOAD)
ESTIMATED RUN TIME: 46 HOURS (75% LOAD)
MINE SITE USE AND SAFTEY
BUNDED FUEL TANK: YES
EMERGENCY STOP: YES
BATTERY ISOLATOR: YES
SOUTH AFRICAN STANDARDS: YES
CANOPY
FULLY ENCLOSED SOUND PROOF CANOPY: YES
NOISE LEVEL: 64 DbA @ 7M
OUTLETS: 3 X 15 AMP (240V), 1 X 20 AMP (415V)
DIMENSIONS & WEIGHT
DIMENSIONS: 1800MM L X 780MM W X 1160MM H
WEIGHT: 650 KG

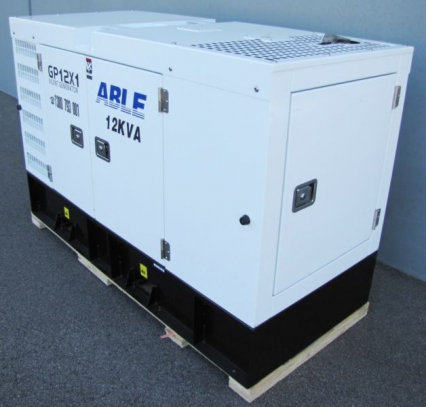

Prime Power : 12kW / 12kVA 240 Volts 50Amps
Standby Power : 13kW / 13kVA
Power Factor : 1
Phase Voltage : Single Phase 240 Volt
Frequency : 50 Hertz
Engine : OEM 4 Cylinder Diesel
RPM : 1500/min
Cooling Method : Water Cooled
Alternator : Single Phase 4 Pole Brushless Synchronous -/c AVR
Starter System : 12 volt Electric - Battery Included
Controller : Smartgen HGM6100K Series
2 Wire / Remote Start Capable
Over Temperature Protection
Over Current Protection
Low Oil Protection
Safety Systems : Battery Isolator
Emergency Stop
Failsafe Shutdown Fuel Solenoid
Noise Level : 60 dBA at 7 metres
Fuel Tank Capacity : 97 Litres (-/c Fuel Gauge)
Running Time : 30 Hours Continuous (prime load)
Fuel Consumption : 3 litres/hour (prime load)
Chassis Enclosure : Lockable
Sound Deadening Throughout
Weather Resistant Powder Coating
Stainless Steel Fittings
External Use
Mine Site Ready Bunding : Yes
ATS (Mains Failure) : Easy Connect Plug (ATS Box Optional)
Single Phase Outlets : 3 x 15 Amp IP66
Three Phase Outlets : No
Hardwire Terminals : Yes
RCD / RCBO : African standard (IP67 Enclosed)
Options : Automatic Start Systems
GSM
Timer
Synchronisation
Wireless Remote
Solar System Compatible (Majority)
ATS (Mains Failure Detection / Auto Transfer Switch)
Minespec Padlockable Battery Isolator
Weight : 708 kg
Dimensions : 180 L x 78 W x 116 H cm
Prime Power : 12kW / 15kVA 415 Volts 21Amps
Standby Power : 13kW / 16kVA
Power Factor : 0.8
Phase Voltage : Three Phase 415 Volt
Frequency : 50 Hertz
Engine : OEM 4 Cylinder Diesel
RPM : 1500/min
Cooling Method : Water Cooled -
Alternator : Three Phase 4 Pole Brushless Synchronous -/c AVR
Starter System : 12 volt Electric - Battery Included
Controller : Smartgen HGM6100K Series
2 Wire / Remote Start Capable
Over Temperature Protection
Over Current Protection
Low Oil Protection
Safety Systems : Battery Isolator
Emergency Stop
Failsafe Shutdown Fuel Solenoid
Noise Level : 60 dBA at 7 metres
Fuel Tank Capacity : 97 Litres (-/c Fuel Gauge)
Running Time : 30 Hours Continuous (prime load)
Fuel Consumption : 3 litres/hour (prime load)
Chassis Enclosure : Lockable
Sound Deadening Throughout
Weather Resistant Powder Coating
Stainless Steel Fittings
External Use
Mine Site Ready Bunding : Yes
ATS (Mains Failure) : Easy Connect Plug (ATS Box Optional)
Single Phase Outlets : 3 x 15 Amp IP66
Three Phase Outlets : 1 x 20 Amp IP66
Hardwire Terminals : Yes
RCD / RCBO : (IP67 Enclosed)
Options : Automatic Start Systems
GSM
Timer
Synchronisation
Wireless Remote
Solar System Compatible (Majority)
ATS (Mains Failure Detection / Auto Transfer Switch)
Minespec Padlockable Battery Isolator
Weight : 708 kg
Dimensions : 180 L x 78 W x 116 H cm
Prime Power : 24kW / 30kVA 415Volts 42Amps
Standby Power : 26kW / 33kVA
Power Factor : 0.8
Phase Voltage : Three Phase 415 Volt
Frequency : 50 Hertz
Engine : Isuzu 4 Cylinder Diesel 4JB1 T
RPM : 1500/min
Cooling Method : Water Cooled
Alternator : Three Phase 4 Pole Brushless Synchronous -/c AVR
Starter System : 12 volt Electric - Battery Included
Controller : Smartgen HGM6100K Series
2 Wire / Remote Start Capable
Over Temperature Protection
Over Current Protection
Low Oil Protection
Safety Systems : Battery Isolator
Emergency Stop
Failsafe Shutdown Fuel Solenoid
Noise Level : 65 dBA at 7 metres
Fuel Tank Capacity : 145 Litres (-/c Fuel Gauge)
Running Time : 24 Hours Continuous (prime load)
Fuel Consumption : 6 litres/hour (prime load)
Chassis Enclosure : Lockable
Sound Deadening Throughout
Weather Resistant Powder Coating
Stainless Steel Fittings
External Use
Mine Site Ready Bunding : No
ATS (Mains Failure) : Easy Connect Plug (ATS Box Optional)
Single Phase Outlets : 2 x 15 Amp IP66
Three Phase Outlets : 1 x 20 Amp IP66
1 x 32 Amp IP66
Hardwire Terminals : Yes
RCD / RCBO : Australian Standard (IP67 Enclosed)
Options : Automatic Start Systems
GSM
Timer
Synchronisation
Wireless Remote
Solar System Compatible (Majority)
ATS (Mains Failure Detection / Auto Transfer Switch)
Minespec Padlockable Battery Isolator
Weight : 850 kg
Dimensions : 200 L x 85 W x 118 H cm
